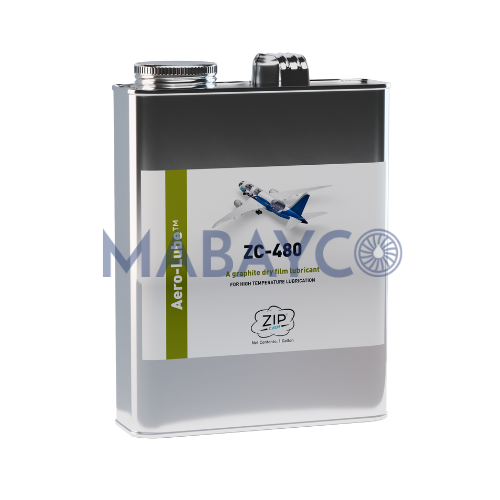

Zip-Chem® Aero-Lube ZC-480 is a dry film lubricant made from a colloidal graphite dispersion in a thermoplastic resin. It dries rapidly at room temperature and produces an extremely tenacious dry film of very fine particle size graphite on the surface to be lubricated. It contains no grease, wax or silicone. The film withstands continuous temperatures of 204 °C and up to 454 °C for limited periods, and it has strong properties for plating non-conductors. It is used on bearings, chains, gears, pistons, locks, hoists, conveyor components, O-rings, gaskets and flat leaf springs. An aerosol version is available as D-5480NS.
Specifications
- ASTM F945; LUB 4500-35C
Typical Properties
- Colour black; density 899 g/L
- Static friction coefficient 0.19
- Service temperature 204 °C; intermittent 454 °C
Packaging
- 473 mL aerosol (case of 12), 3.8 L can (case of 4), 18.9 L pail
| Packing | 16 OZ or 1 USG or 5 USG |
