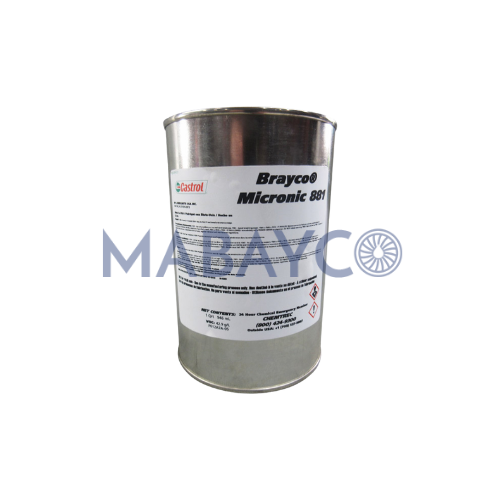

Castrol Brayco™ Micronic 881 is a fire resistant, synthetic hydrocarbon base, ISO viscosity grade 7, red coloured low temperature hydraulic fluid for aircraft, missile, ordnance and industrial use. It is designed specifically for applications where low temperature stability is particularly important. It provides controlled rubber swell for long seal life, low foaming, excellent anti-wear, corrosion protection and oxidation stability. Service temperature is −54 to 135 °C.
Typical Properties
- Kinematic viscosity: 2.21 mm²/s at 100 °C, 7.2 mm²/s at 40 °C, 492 mm²/s at −40 °C, 2350 mm²/s at −54 °C
- Flash point 172 °C; fire point 190 °C (open cup)
- Viscosity index 115; specific gravity 0.843; neutralization number 0.11 mg KOH/g
- Four ball wear scar (40 kg) 0.56 mm; rubber swell (L) 28%
- Passes 72 hour low temperature stability test at −54 °C
| Packing | 1 QT or 5 USG |
| Specifications & Approvals | |
|---|---|
| Specification |
MIL-PRF-87257F
Listed on QPL – recertification pending
|
| NSN · P/N · CAGE |
9150-01-703-5672
· BRAYCO MICRONIC 881 5 USA GALLON
· CAGE 4RRP4
9150-01-726-1682
· BRAYCO MICRONIC 881 5-GAL
· CAGE 98308
|
| CAGE (Manufacturer) | 4RRP4 |
