PPG DeSoto® CA7870 is a conventional solids, carbon filled epoxy anti-static coating with controlled conductive properties. It gives low surface conductivity on non-conductive substrates such as radomes and antennae where static charge dissipation is required. It is compatible with Desothane® HS topcoats, adheres well to plastic surfaces and resists fluids. Service temperature is −54 to 177 °C.
Specifications
- BMS 10-21 Type IV, CMS-CT-223, CMFS033 Type II
- Compatible topcoats: BAMS 565-009, BMS 10-60 Type I and II, BMS 10-72 Type VIII, BMS 10-125 Type III, DPM 6456, DPM 6546, MEP 10-069
Mixing and Application
- By volume CA7870 base 1 : 910X464 activator 1
- Induction time 45, 30 or 15 min depending on temperature; pot life 4 hours at 21–25 °C
- Apply at 15–30 °C, 30–60% RH; dry film 15–25 µm; theoretical coverage 6.3 m²/L at 25 µm
- Lightly sand the surface with 180 grit or finer
Typical Properties
- Colour black; surface resistivity 1.0–100 megohms per square
- At 22–28 °C dust free 15 min, tack free 2 hours; full cure 7 days
- Mixed VOC 700 g/L

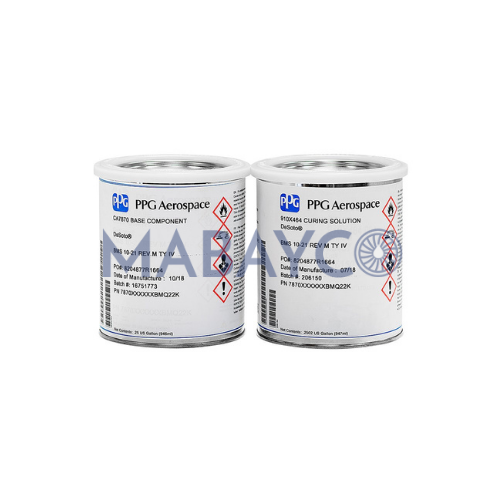

| Packing | QT KIT or 2 Quart Kit or 1USG |
