CS 3204 is a fuel resistant sealant for integral fuel tanks and pressurized cabins and other areas in contact with aircraft fuels, lubricants, oils, water and weathering. It is a two-part polysulfide based compound that cures at room temperature to a flexible, resilient rubber with excellent adhesion to aluminium, magnesium, titanium, steel and numerous other materials. It is designed to withstand the attack of sulfur compounds present in jet fuels. Class B is a thixotropic paste that will not flow or sag on vertical or overhead surfaces. B2 is the class with a 2 hour work life.
Specification
- AMS-S-8802 (formerly MIL-S-8802F) Type II
Typical Properties (Class B)
- Base off-white, curing agent and mix grey
- Mixing ratio by weight 100:10, by volume 100:8.3; non-volatile content 96%
- B2: application time 2 hours; tack free time 24 hours; cure to 35 Shore A 72 hours (25 °C, 50% RH)
- Ultimate hardness 50 Shore A; fungus resistance non-nutrient
Use and Storage
- Surfaces must be free of oil, wax, grease and dirt; do not thin pre-measured kits with solvents
- Stir part B, add all of it to the part A container and mix until a uniform grey colour without streaks is achieved
- Cure may be accelerated by heating up to 49 °C
- 9 months below 27 °C in the original unopened containers

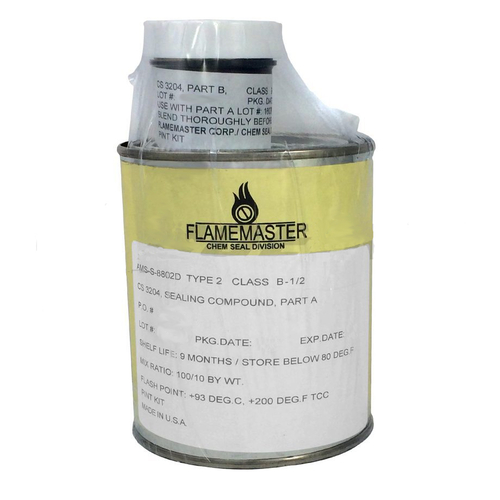

| Packing | 1 Pint or 1 QT |
| Specifications & Approvals | |
|---|---|
| NSN · P/N · CAGE |
8030-00-152-0013
· CS3204 B-2
· CAGE 14439
(CA)
8030-00-432-9544
· CS3204 B-2
· CAGE 14439
(KT)
8030-00-579-8453
· CS3204 B-2
· CAGE 14439
(KT)
8030-00-685-0915
· CS3204 B-2
· CAGE 14439
(KT)
8030-00-723-2746
· CS3204 B-2
· CAGE 14439
(KT)
8030-00-753-4599
· CS3204 B-2
· CAGE 14439
(KT)
8030-00-753-5005
· CS3204 B-2
· CAGE 14439
(CA)
8030-00-753-5006
· CS3204 B-2
· CAGE 14439
(CA)
8030-00-878-8428
· CS3204 B-2
· CAGE 14439
(KT)
8030-01-333-4822
· CS3204 B-2
· CAGE 14439
(CA)
8030-01-333-4823
· CS3204 B-2
· CAGE 14439
(CA)
8030-01-363-9358
· CS3204 B-2
· CAGE 14439
8030-01-387-3196
· CS3204 B-2
· CAGE 14439
(CA)
8030-01-663-5659
· CS3204 B-2
· CAGE 14439
|
| CAGE (Manufacturer) | 14439 |
