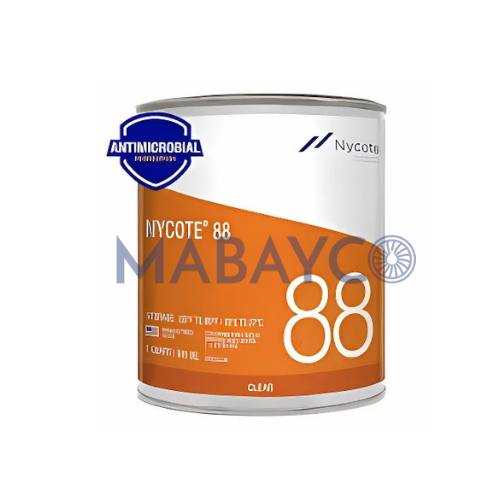

Nycote® 88 Clear is a two-component protective coating system in clear liquid form, with a pre-measured resin to accelerator ratio of 16:1. Service temperature is −57 to 149 °C. NSN 8010-01-530-5341.
Meets the performance requirements of
- DAN1172, DAN1174, 80-T-35-5218, I+D-P-186C, TN10003M, TNA00710050, PCS5751
Typical Properties
- Viscosity (Zahn #2) 21–27 s; solids 17%; flash point 70 °F
- Film thickness 0.4 mil; coverage 300 ft² per gallon; tack free 1 hour
- Pencil hardness 1-H; peel 21 lb/in; abrasion 2.9 mg; passes salt fog (ASTM B117)
Storage
- Shelf life 12 months
| Packing | 1/2 PT or 1 Pint or 1 QT |
| Color | Blue or Clear or Tinted Blue |
| Specifications & Approvals | |
|---|---|
| Specification |
AMS-S-4383
(meets)
AMS-S-8802
(meets)
MIL-DTL-27422F
(meets)
MIL-DTL-5578D
(meets)
MIL-I-46058C
(meets)
MIL-T-52983G
(meets)
SAE-AMS-22725
(meets)
|
| OEM Approvals |
04TMM9, 80-T-35-5218, BAC5128, BAC5153, BAC5891PSD6-29, BSS7002, BSS7010, DAN1172, DAN1174, DMS1850, MC5014, MC9014, PCS5157, TH 5.943/2
|
| NSN · P/N · CAGE |
8010-01-530-5341
· NYCOTE 88
· CAGE 05803
8010-01-709-1609
· NYCOTE88
· CAGE 05803
(KT)
|
| CAGE (Manufacturer) | 05803 |
