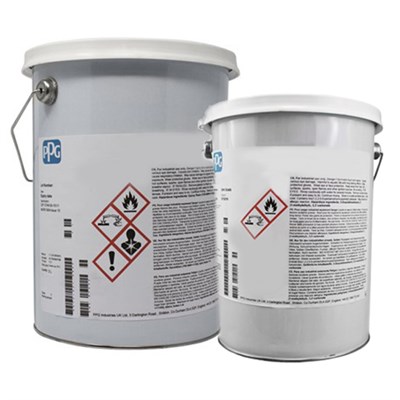

PPG 4125 is a two-pack, direct-adhesion epoxy coating designed to protect fasteners in aircraft assemblies, including all types of rivets, nuts and fasteners on aluminium alloys.
Features
- Two-pack direct-adhesion epoxy topcoat
- Applicable on all types of fasteners
- Excellent adhesion properties
Components / Application
- Mix ratio by volume: 4125 base 2 parts, 0613/9000 activator 1 part, 0580/9000 thinner to viscosity
- Abrade with Scotch-Brite® and degrease before application; clean with DeSoto® CN20 or Desoclean™ 45
- Pot life: 8 hours at 21–25 °C; apply 1–2 cross coats
- Recommended dry film thickness: 20–40 µm; theoretical coverage 14 m²/L at 30 µm
Specifications
- Qualified to 75-T-2-5721-3-1 and HMRC 0069
- Meets AIMS 04-04-009, AIMS 04-04-010, AIMS 04-04-043, ASN-B-707205P, BLGG 120001, DAN 1174
| Packing | 1 LT or 4 LT |
| Color | Blue or Gray |
