PPG PR-1772 Class B is a low-weight, two-part, chemically curing polysulfide fuselage sealant. It offers as much as 30% weight savings per unit volume over traditional sealants used for these purposes, and the cured sealant keeps excellent elastomeric properties after limited exposure to jet fuel and aviation gas. The low-sag, thixotropic paste is applied by extrusion gun or spatula. Service temperature is −54 to 121 °C (−65 to 250 °F), with intermittent excursions to 135 °C (275 °F).
Class B Common Properties (BMS 5-142 Class B test methods)
- Colour: Part A black, Part B off-white, mixed dark brown
- Base viscosity 9,000 P (900 Pa·s)
- Specific gravity 1.09; non-volatile content 91%; ultimate hardness 45 Shore A
- Tensile strength 190 psi (1311 kPa); elongation 280%; weight loss 4.9% in hydrocarbon resistance
Use and Storage
- Mix the kit at the ratio given in the application properties; mix Part A separately to uniformity first
- At least 9 months at 4–32 °C (40–90 °F) in unopened containers

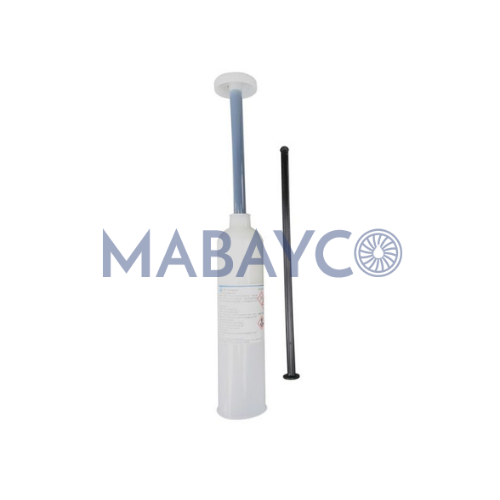

| Packing | 6 OZ |
