PPG PR-1775 Class B is a non-chromate, corrosion inhibitive sealant. Service temperature is −54 to 121 °C, with short term recurring exposures (approximately 6 hours) to 182 °C. It is an effective barrier against the common causes of corrosion on aluminium alloys and between dissimilar metals, and maintains elastomeric properties after exposure to jet fuel and aviation gasoline. It is a two-part, manganese dioxide cured Permapol® P-5 polysulfide, a low sag, thixotropic paste applied by extrusion gun or spatula. Tests are run to AMS 3265 Class B methods.
Application Properties (B-2)
- Colour: A black, B white, mixed grey; mix ratio by weight 10:100
- Base viscosity 11,000 P (1100 Pa·s)
- Application life 2 hours; tack free under 24 hours; 30 Shore A in 48 hours
Performance
- Specific gravity 1.59; non-volatile content 94%; hardness 51 Shore A
- Peel: 142–165 N/25 mm after JRF, 169–191 N/25 mm after JRF/salt water, 100% cohesive
- Tensile strength 3413 kPa (495 psi); elongation 420%
- No corrosion in galvanic cell tests with aluminium/titanium and aluminium/cadmium couples
Storage
- At least 9 months below 27 °C in unopened containers; frozen cartridges at least 30 days below −40 °C

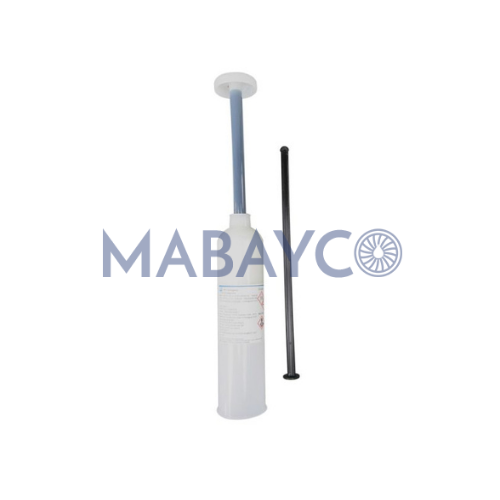

| Packing | 6 OZ or 1 QT |
