PPG PR-1776M Class B is a low density, high temperature aircraft integral fuel tank sealant. Service temperature is −54 to 121 °C, with very limited excursions up to 182 °C. It is designed for fillet sealing of fuel tanks and other fuselage applications, and offers up to 20% weight savings per unit volume over traditional sealants. It is a two-part, manganese dioxide cured Permapol® P-5 modified polysulfide and a direct replacement for PR-1776 Class B. Tests are run to AMS 3281 and BMS 5-45 methods.
Application Properties (B-2)
- Colour: A black, B off-white, mixed dark brown; mix ratio by weight 10:100
- Base viscosity 11,100 P (1100 Pa·s); slump 3.81 mm
- Application life 2 hours; tack free under 16 hours; 30 Shore A in 24 hours
Performance
- Specific gravity 1.29; non-volatile content 94%; hardness 50 Shore A
- Tensile strength 1812 kPa (263 psi); elongation 366%
- No cracking or loss of adhesion at −54 °C; can be sanded
Storage
- Semkit or can kit: at least 9 months at 4.5–27 °C
- Pre-mixed and frozen cartridge: 28 days at −40 °C or below

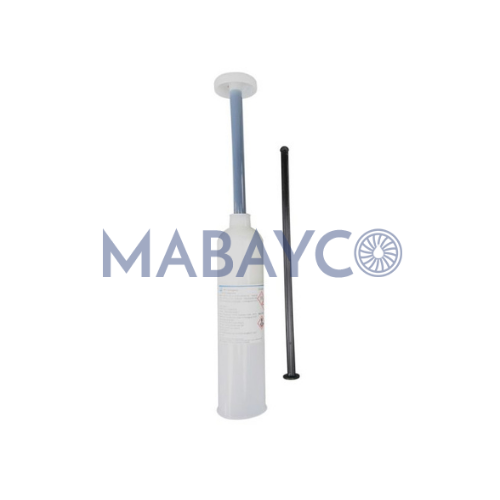

| Packing | 60ml or 6 OZ or 1 Pint |
