Skydrol PE-5 is a fire resistant phosphate ester aviation hydraulic fluid developed to meet and exceed the more demanding Type V fluid requirements. It combines long fluid life with low density and low viscosity at low temperature. Its thermal stability is assessed by the Airbus fluid life test method at a 0.5% moisture level.
Typical Properties
- Clear, oily, purple liquid; specific gravity (25 °C) 0.990–1.000
- Viscosity 3.11–3.51 cSt at 99 °C, 9.02–10.02 cSt at 38 °C, max 2000 cSt at −54 °C
- Pour point max −62 °C; flash point (COC) min 160 °C; fire point min 177 °C; autoignition min 400 °C
- Acid number max 0.10 mg KOH/g; moisture max 0.20%
- Particle contamination (NAS 1638, AS4059F): 5–15 µm max 32,000; 15–25 µm max 5700; over 100 µm max 32

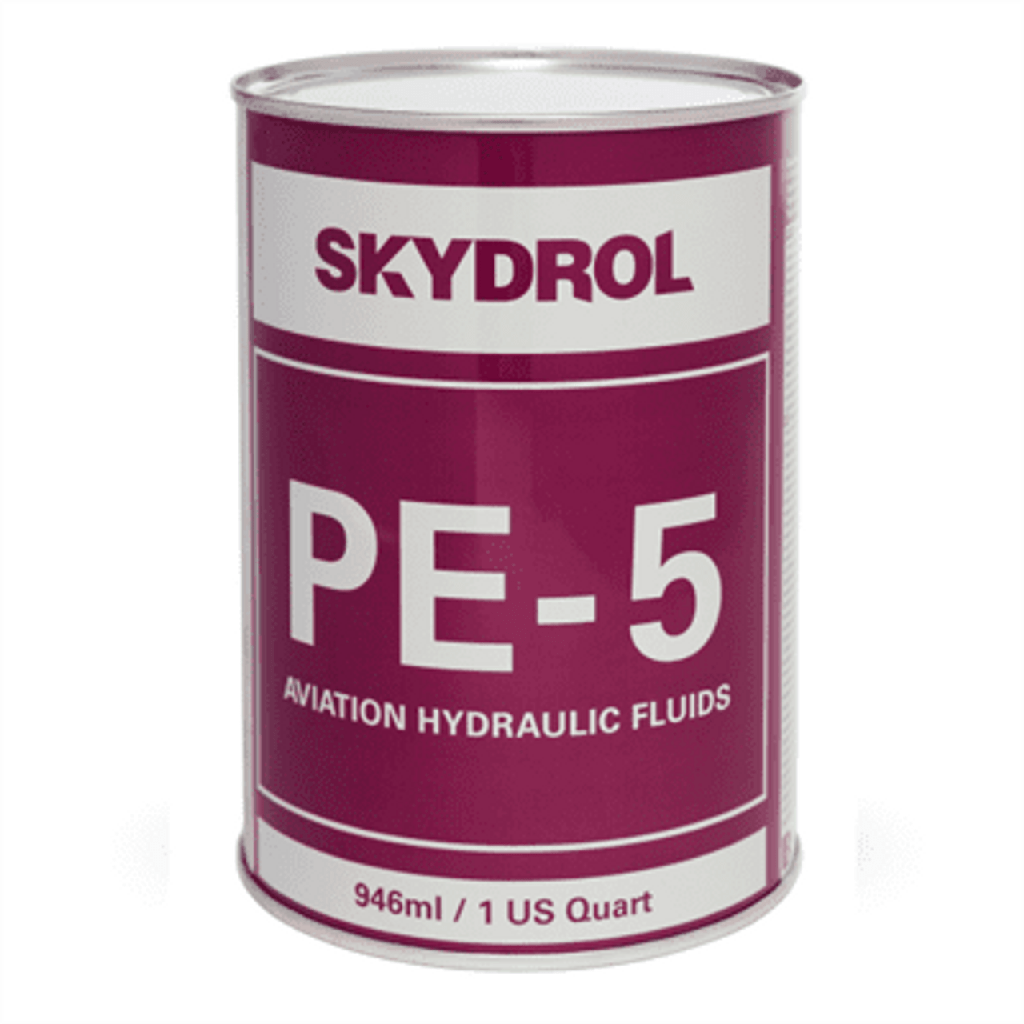

| Packing | 1 QT or 1 USG |
| Specifications & Approvals | |
|---|---|
| NSN · P/N · CAGE |
9150-01-668-3661
· SKYDROL PE-5
· CAGE 1MFY8
9150-01-707-4491
· SKYDROL PE-5
· CAGE 74364
(1 QT)
|
| CAGE (Manufacturer) | 1MFY8 |
