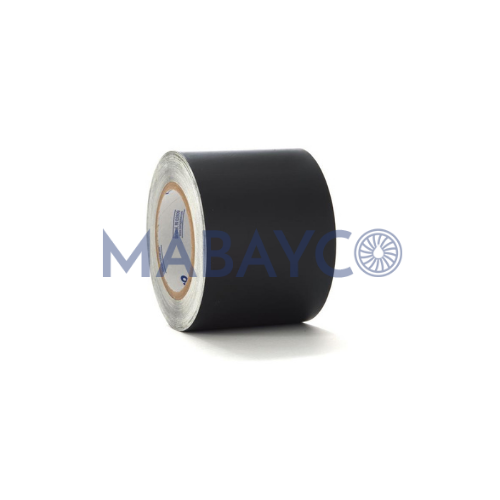

Patco 110-53 is a black, heavy-duty, single-coated PVC film tape with acrylic adhesive. It provides masking protection during media blasting and shot peening, and is also used as a gasketing material and for abrasion protection.
Typical Values
- Total thickness: 0.241 mm (9.5 mils); backing thickness 0.216 mm (8.5 mils) (PSTC-133)
- Adhesion to steel: 5.47 N/cm (50 oz/in) (ASTM D3330); tensile strength: 43.78 N/cm (25 lb/in) (ASTM D3759)
- Elongation: 160%; abrasion index: 34 (ASTM D4060)
- Application temperature: 10–49 °C; operating temperature: −40 to 93 °C
Features
- PVC film backing conforms to irregular surfaces and resists abrasion
- Acrylic adhesive (A272) gives an aggressive long-term bond with low residue on removal and good low-temperature performance
- Die-cuttable coated kraft paper liner
Storage
- 16–27 °C (60–80 °F) at 40–60% RH; shelf life 12 months from shipment at 25 °C
| Tape Size | 3" RL |
