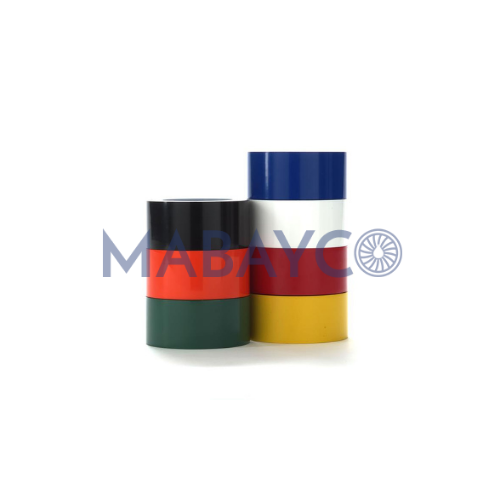

Patco 503A is a polyethylene (LDPE) film tape with an acrylic adhesive (A100), available in colours for colour coding, sealing and general fabricating applications.
Features
- LDPE film, conformable for irregular surfaces; will not crack or crease
- Acrylic adhesive with high adhesion and cohesion; permanent bond with virtually no edge bleed
- Excellent high- and low-temperature performance and long-term ageing
Applications
- General purpose sealing; splicing and seaming; temporary hold-down
- Colour coding, aisle marking, decorative markings and striping
- Thermal insulation outer wrap; bondbreaker tape; industrial fabricating
Typical Values / Storage
- Total thickness: 5.5 mils (0.140 mm); substrate 4.5 mils
- Adhesion to steel: 50 oz/in (5.47 N/cm); elongation 400%
- Colours: white, black, red, blue, yellow, green, orange
- Shelf life 12 months from shipment; store at 60–80 °F, 40–60% humidity
| Tape Size | 1in*108ft |
