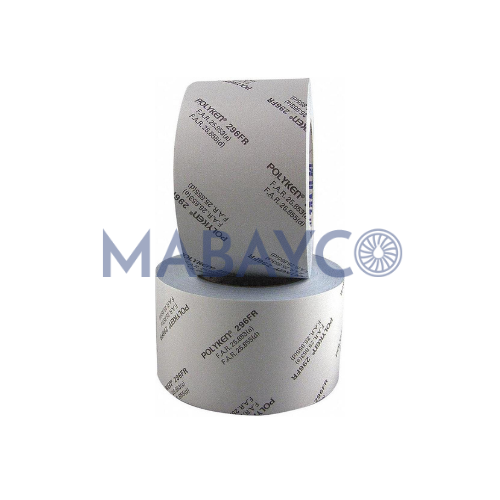

Polyken 296FR is a flame-retardant tape with a fibreglass cloth backing, bromide-free acrylic adhesive and LDPE film liner. It offers super high tensile strength and resists flame penetration; it conforms to curves and corners, is repositionable and removes cleanly. It complies with FAR 25.853(a), 25.855(d) and 25.856(a) and meets the requirements for use in aircraft cargo compartments. White, printed or unprinted.
Specifications
- FAA: FAR 25.853(a), FAR 25.855(d), FAR 25.856(a)
- Boeing: BMS5-146M; 737-SL-25-115-B, 747-SL-25-195-B, 757-SL-25-085-B, 767-SL-25-112-B, 777-SL-25-037-B
- Airbus: ABD0031, Para 7.3.2 and 7.4
Applications
- Cargo pit applications for freight-carrying aircraft; seaming and repairing cargo compartment liners
- Covering pins and rivets; metal surface protection during soldering or welding
Typical Values
- Total thickness 0.178 mm (7.0 mils); weight 210 g/m²
- Adhesion to steel 4.92 N/cm (45 oz/in); tensile strength 234.67 N/cm (134 lb/in)
- Operating temperature −40 to 135 °C (−40 to 275 °F)
- Burn length 3 in; extinguishing time 0.66 s; after-glow 0 s
- ASTM E595: total mass loss 0.36%; collected volatile condensable material 0.01%
- Standard sizes: 1, 2, 3 and 4 in × 36 yd
Storage
- 16–27 °C (60–80 °F) at 40–60% RH; 24 months from manufacture at 25 °C
| General | |
|---|---|
| Packing | 1" RL or 2" RL or 3" RL or 4" RL or 6" RL |
| Uncategorized | |
| Tape Feature | Printed or Unprinted |
