PPG PR-1422 Class B is an aircraft integral fuel tank sealant. Service temperature is −54 to 121 °C, with intermittent excursions up to 135 °C. It is designed for fillet sealing of fuel tanks and other fuselage sealing applications, and maintains elastomeric properties after prolonged exposure to jet fuel and aviation gasoline. It is a two-part, dichromate cured polysulfide, a low sag, thixotropic paste applied by extrusion gun or spatula. Tests are run to AMS-S-8802 Class B methods.
Application Properties (B-1/2)
- Colour: A black, B light brown, mixed brown; mix ratio by weight 13.3:100
- Base viscosity 13,000 P (1300 Pa·s); slump 3.81 mm
- B-1/2: application life 1/2 hour; tack free under 8 hours; 35 Shore A in 24 hours
Performance
- Specific gravity 1.45; non-volatile content 92%; hardness 55 Shore A
- Peel: 142–173 N/25 mm after JRF, 133–173 N/25 mm after JRF/salt water, 100% cohesive
- Tensile strength 2551 kPa (370 psi); elongation 310%
- Weight loss 5.0% after 7 days in JRF at 60 °C; no corrosion after 20 days in salt water/JRF
- No cracking or loss of adhesion at −54 °C; repairable to itself
Storage
- At least 9 months at 5–27 °C in unopened containers

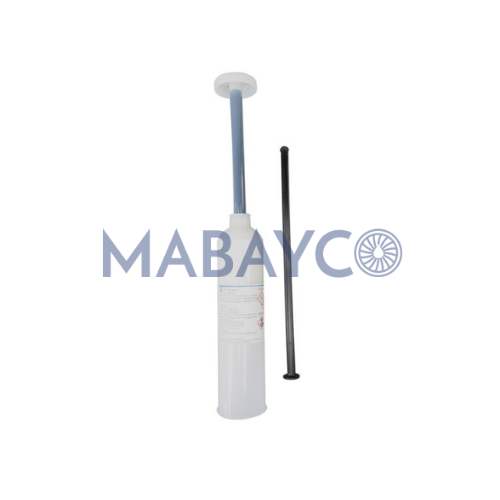

| Packing | 6 OZ / 100 ML or 1 Pint |
