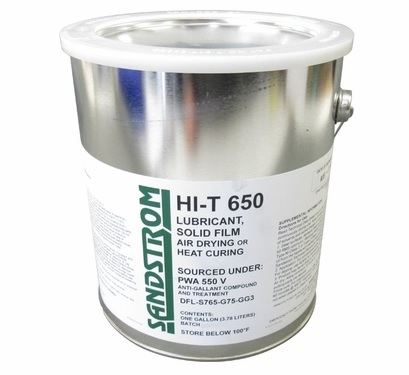

Sandstrom HI-T 650 is a thermoset solid film lubricant containing molybdenum disulfide and corrosion inhibiting pigments in a silicone vehicle. It is designed to prevent galling and provide long wear life at high temperatures (260–399 °C), beyond the operating ranges of Sandstrom 9A and 28A. It gives very low friction at loads above 100,000 psi. It contains no lead or graphite, is applied by spray, dip or brush, and may be air dried or heat cured. It is qualified to SAE AS1701 Class V and sourced under PWA 550.
Typical Properties
- Colour flat dark grey; weight solids 21.5–26.0%; VOC 816.6 g/L
- Dry film thickness 0.3–0.7 mil; coverage 216 ft² per gallon at 0.5 mil
- Operating temperature up to 399 °C, intermittent 649 °C
- Coefficient of friction 0.098; wear life 200–250 min; load carrying capacity 3000 lbf
- Passes JP4 and Skydrol LD4 resistance
Cure and Storage
- Minimum cure: 72 hours at 25 °C; maximum cure: 1 hour at 249 °C
- Shelf life 1 year from shipment; store below 38 °C
| Packing | 1 QT or 1 USG |
| Specifications & Approvals | |
|---|---|
| OEM Approvals |
BF Goodrich Aerospace –
175174
Eaton –
209-62C
Hamilton Sundstrand –
HS248 Type A13
Pratt & Whitney –
PWA550
Rolls-Royce –
EPS11710, EPS11722
|
| NSN · P/N · CAGE |
8030-01-031-6840
· HI-T 650
· CAGE 34227
(GL)
9150-01-021-4854
· HI-T 650
· CAGE 34227
(GL)
|
| CAGE (Manufacturer) | 34227 |
